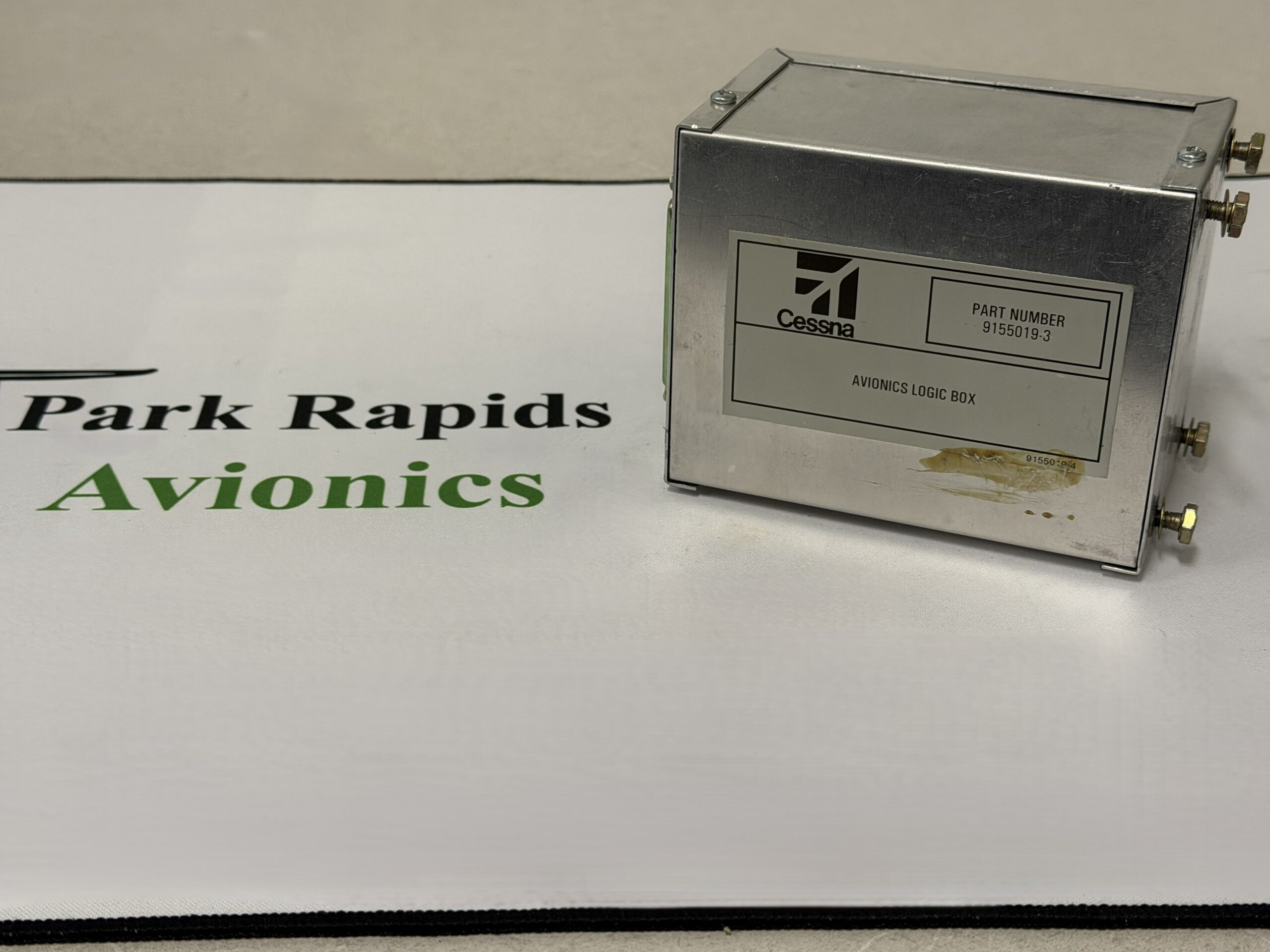

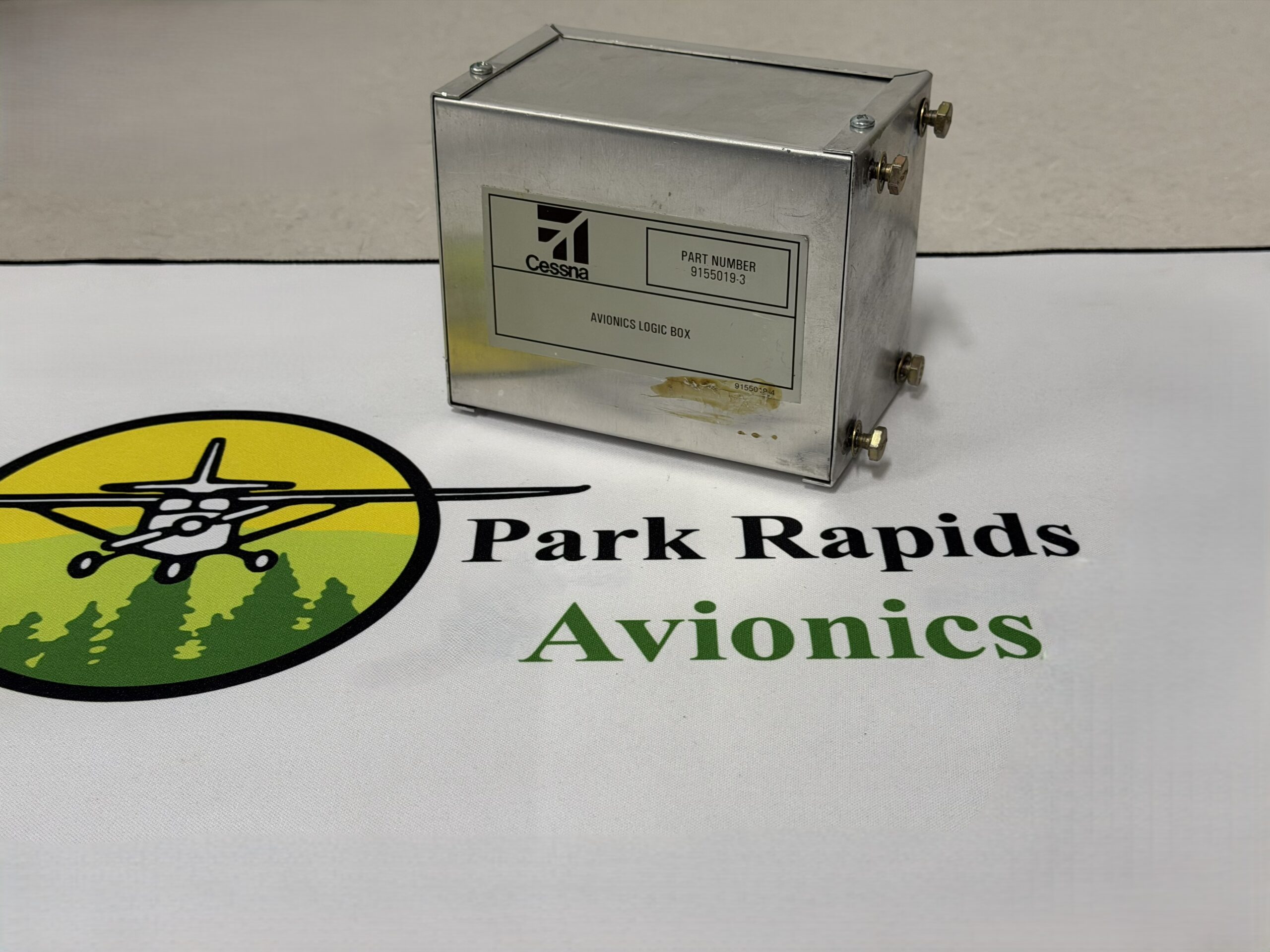

Textron Aviation Avionics Logic Box Assembly
The Textron Aviation Avionics Logic Box Assembly is a remote-mounted electrical management module engineered for the Cessna Citation fleet. Positioned securely within the aircraft's remote equipment bays or behind-the-panel rack housings, this module acts as a hardwired switching hub. It uses internal relay matrices and discrete gate logic to route critical cross-talk signals, preventing conflicting commands or data collision between primary avionics suites and peripheral subsystems.
Description
Key Technical Capabilities
- Discrete Signal Routing: Manages complex switching pathways among multiple communication and navigation lines, translating cockpit panel selections into precise system-wide modes.
- Dual Flight Deck Isolation: Features hardware-level logic gates that ensure pilot and copilot inputs remain isolated or linked based on system priority, eliminating data collisions or cross-talk on common avionics buses.

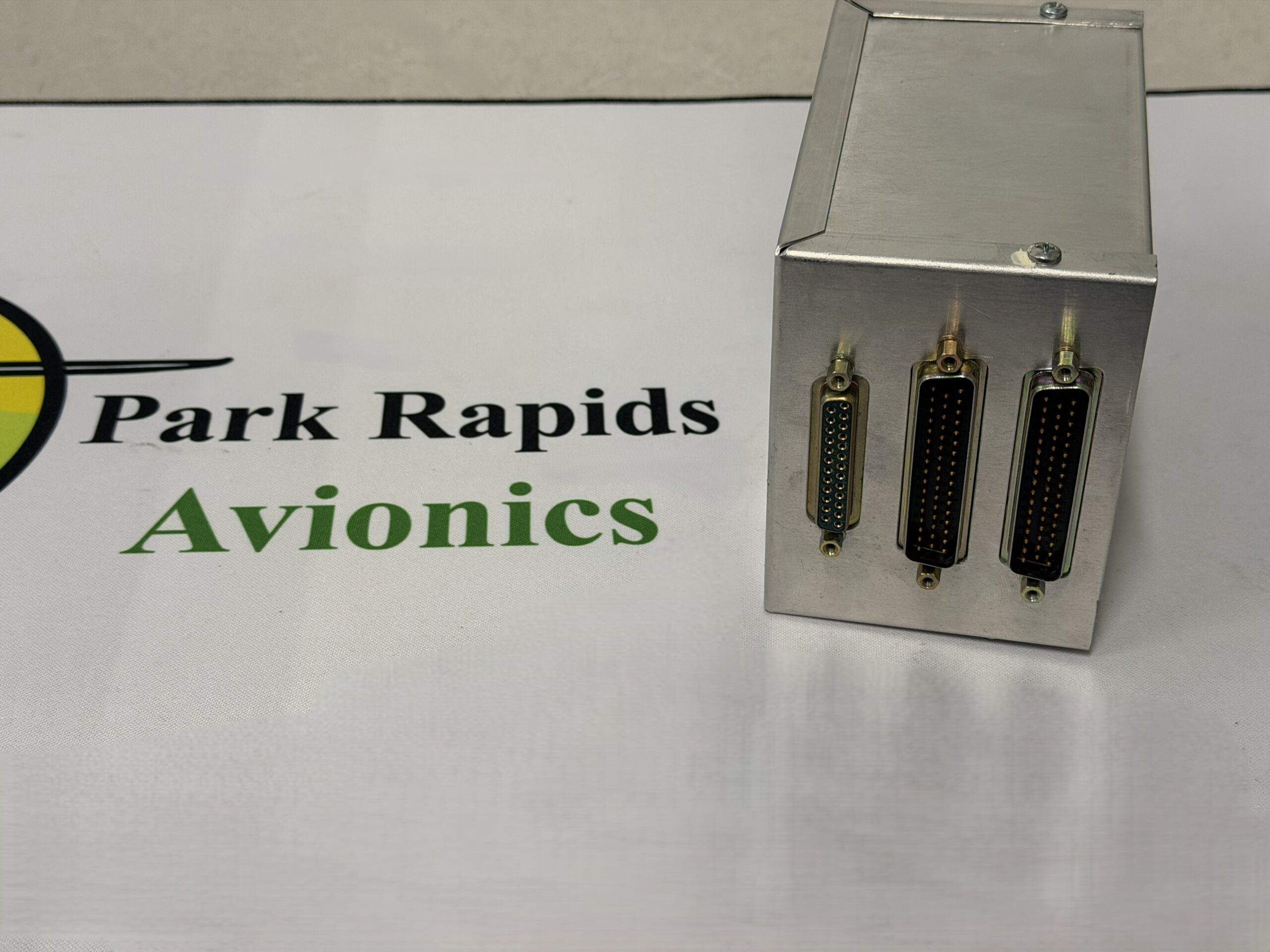

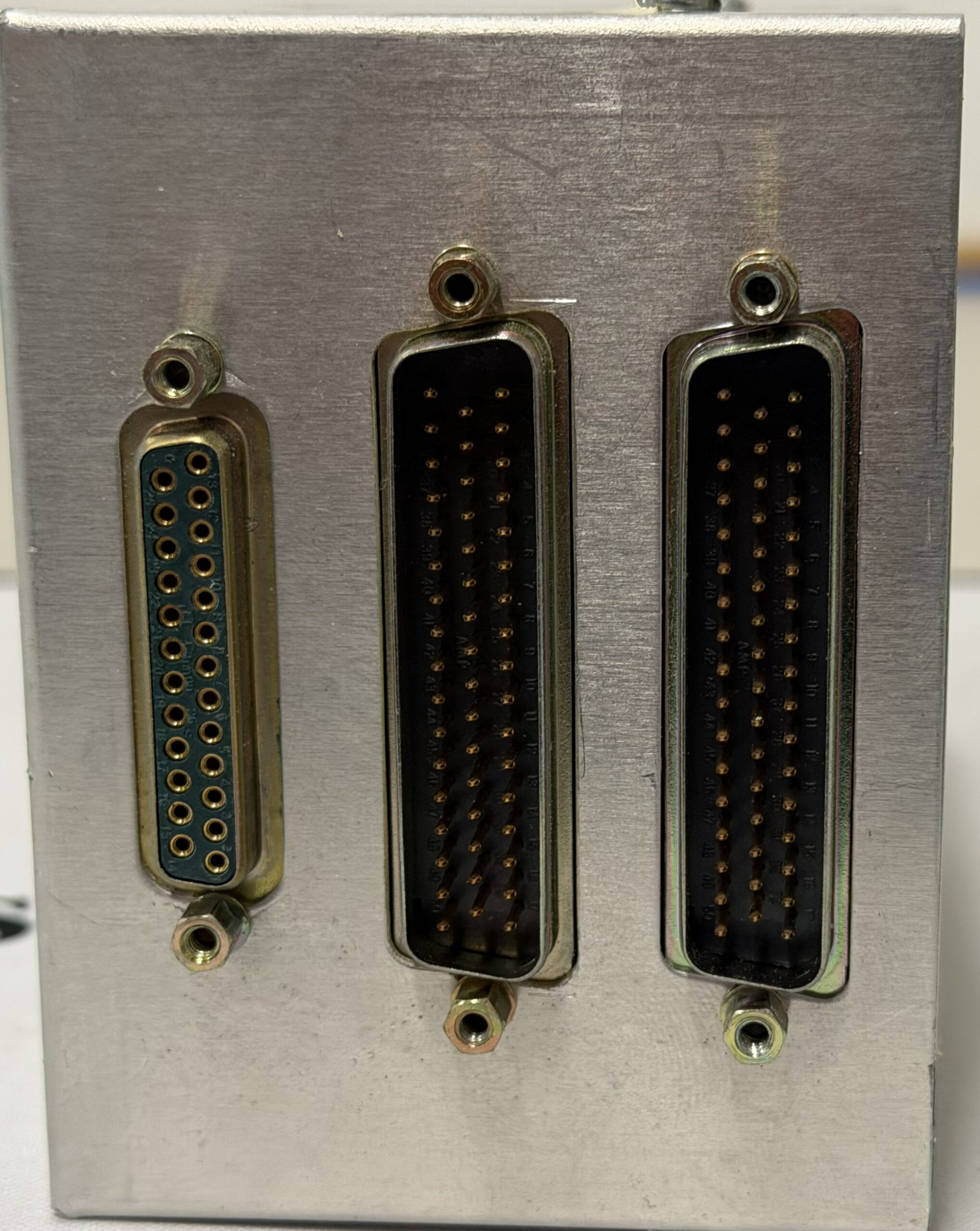

- Standard Multi-Pin Interfacing: Configured with a dedicated, high-density plug connector mounted directly to the chassis, providing low-resistance signal pass-throughs and simplified slide-in installation.

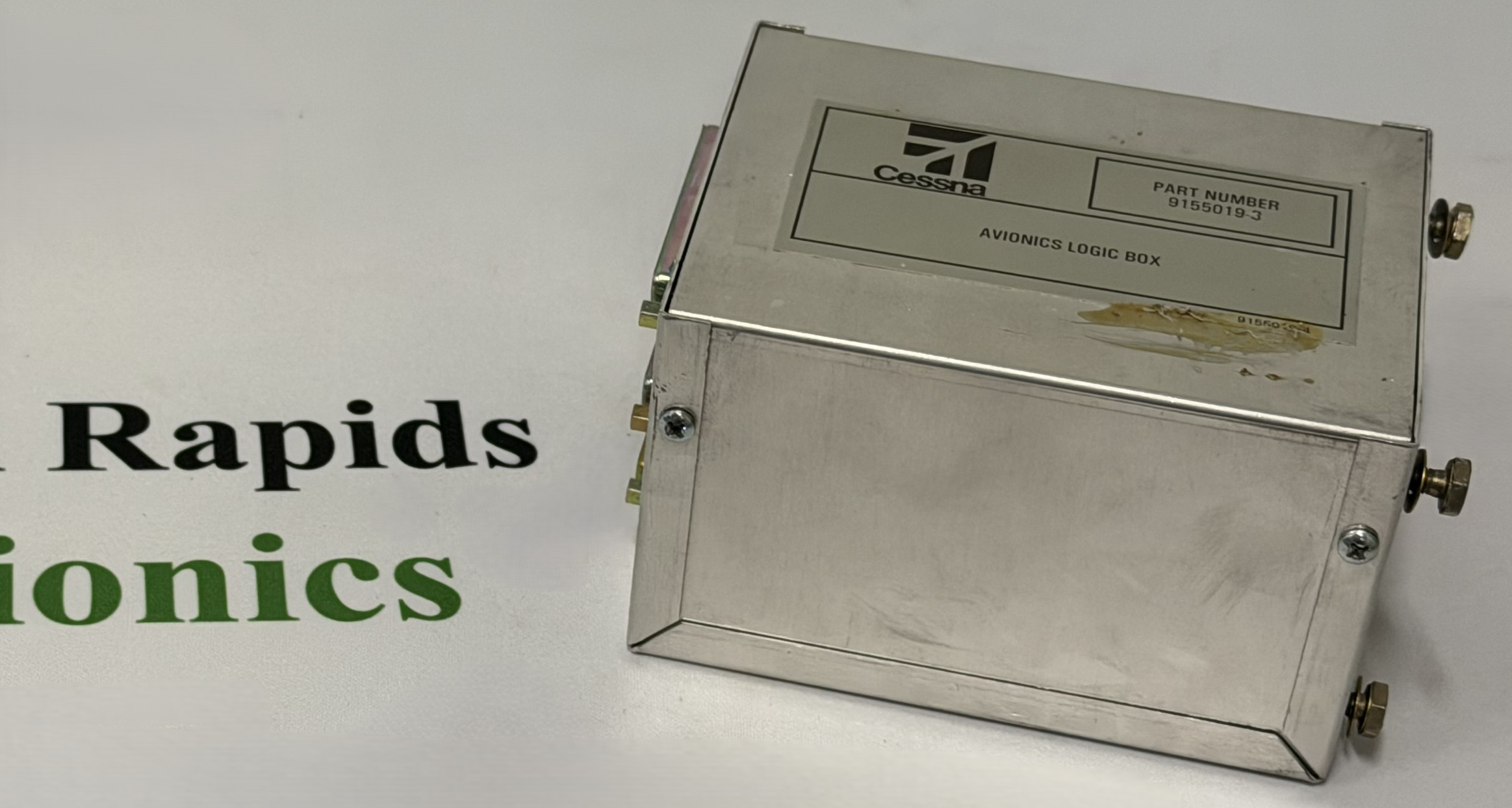

- Vibration and Thermal Resistance: Encased in a lightweight, rugged metal housing built to official factory environmental specifications to withstand the continuous structural G-forces and temperature fluctuations common to corporate jet travel.
- Textron Airframe Footprint: Designed to bolt directly onto factory interior structure or avionics shelf brackets in compatible Cessna Citation models without requiring field alterations or customized harness breakouts.
Additional information
| Part Number | 9155019-3 |
|---|
