Description

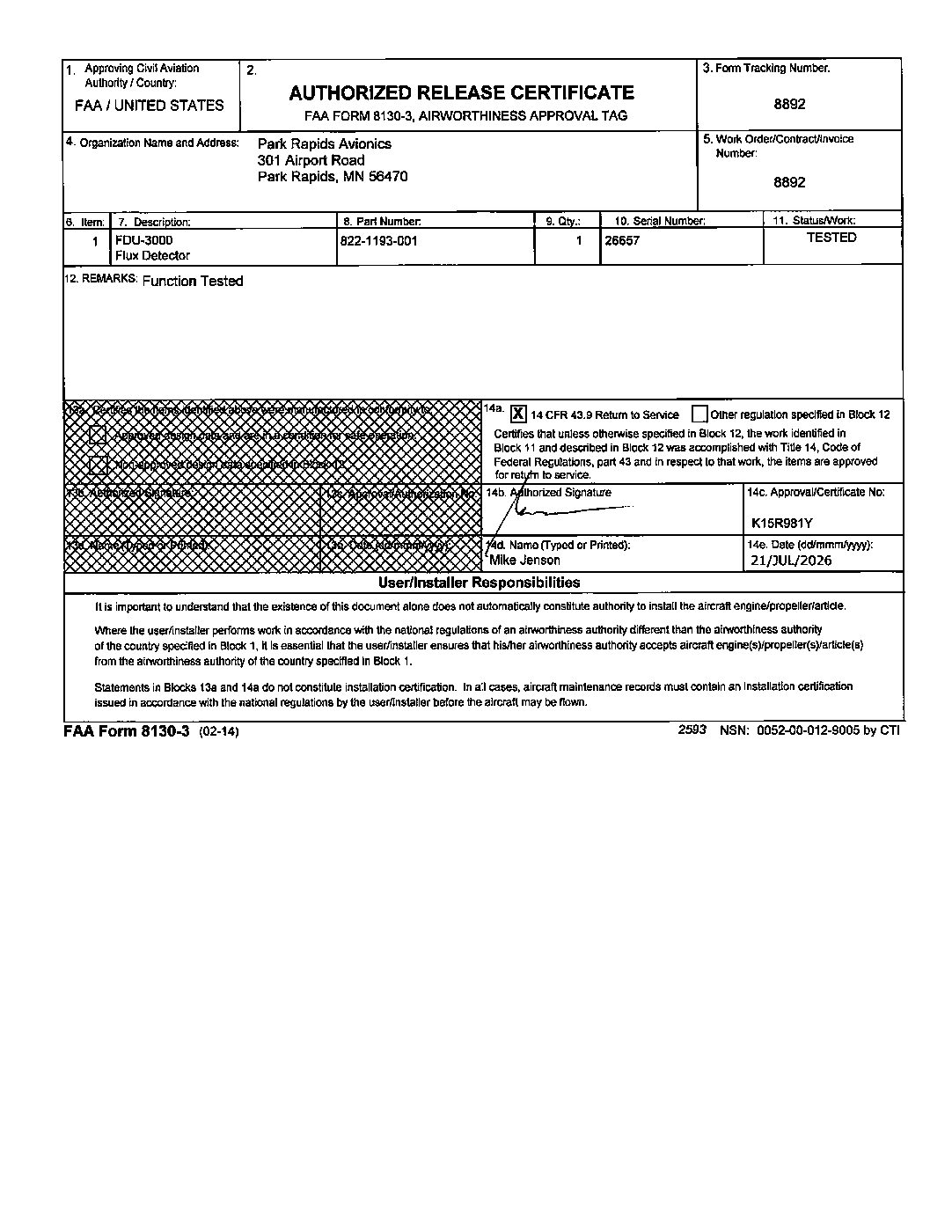

This unit has been bench tested by an FAA certified repair station and it comes with an 8130 single release dated 7/21/2026.

• Two-Axis Fluxgate Architecture: Houses a high-reliability, two-axis magnetic sensor matrix. The internal circuitry yields outputs directly proportional to the sine and cosine of the aircraft’s magnetic heading angle for stable tracking.
• System Reference Interfacing: Formulated to supply raw magnetic data streams directly to the Collins AHC-3000 Attitude Heading Reference System (AHRS). The flight computer processes this signal to stabilize horizontal situation indicators (HSI) and primary flight displays.
• Remote Interference Isolation: Designed strictly for remote airframe installation—such as deep within wingtip trailing edges or vertical stabilizer caps. This physical separation keeps the internal flux gates safe from deviations caused by high-draw cockpit avionics and electrical wiring.
• Autopilot Coordination Support: Provides continuous heading data required by primary flight computers and autopilot guidance systems. This stream prevents drift during prolonged cruise segments and maintains high-resolution tracking across automated navigation legs.
• Aviation Grade Environmental Spec: Encased within a compact, sealed aluminum housing built to survive wide operating thermal shifts and vibration forces common to unpressurized structural wing zones.
