Description

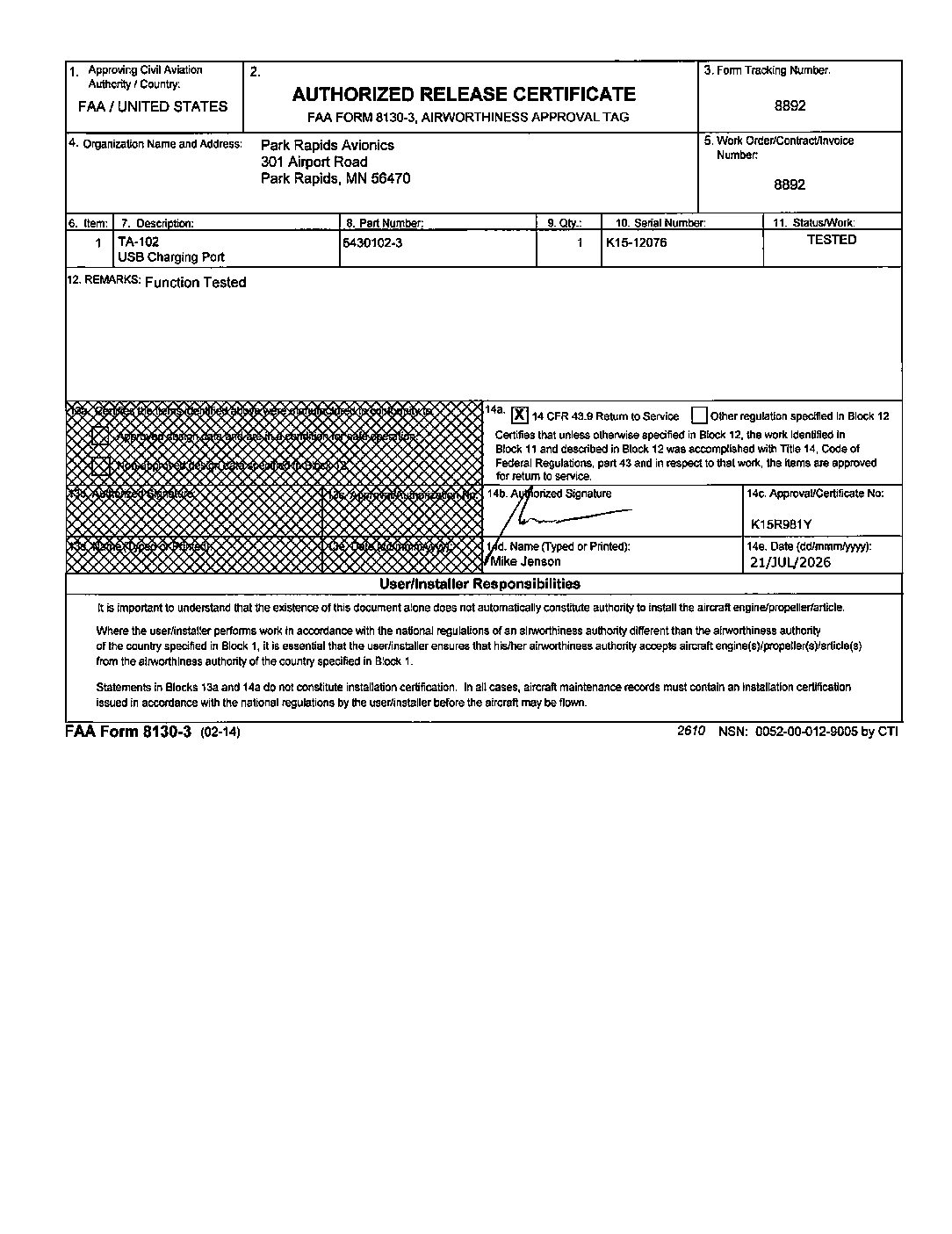

This unit has been bench tested by an FAA certified repair station and it comes with an 8130 single release dated 7/21/2026.

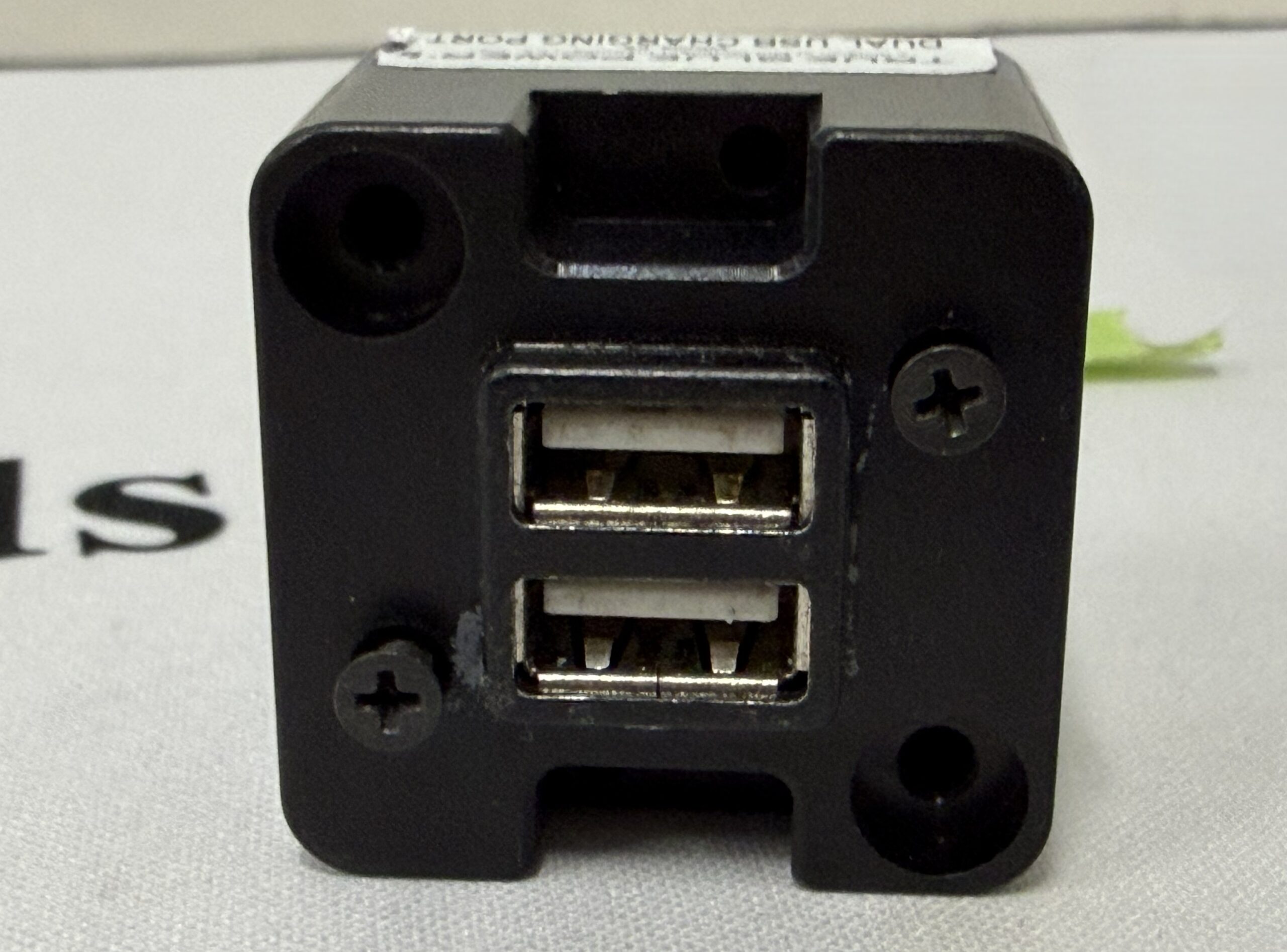

• Simultaneous High-Power Output: Features two independent USB Type-A ports capable of delivering a dedicated 2.1 Amps per port concurrently. This high amperage prevents battery drain on demanding mobile devices or tablets while continuously tracking real-time navigation or weather charts.
• Automated Device Handshaking: Communicates directly with connected electronics via internal data lines to simulate a Dedicated Charging Port (DCP) profile. This protocol prompts the attached device to automatically accept maximum charging currents without performance throttling.
• Comprehensive Circuit Protection: Houses integrated, solid-state safeguards that shield both the unit and the downstream hardware. The system automatically protects against short circuits, input over-voltages/power surges, and over-temperature variations.

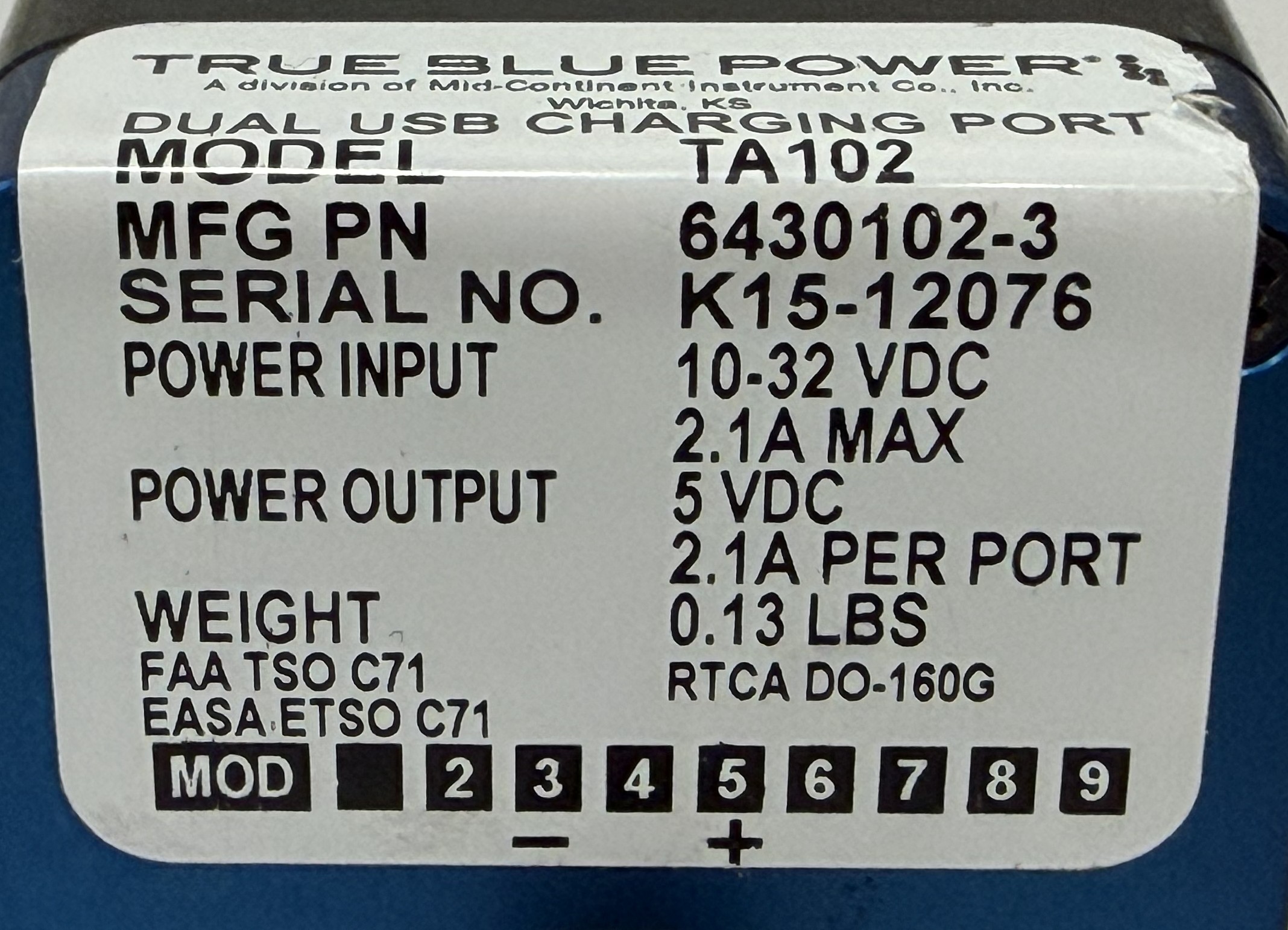

• Wide-Range Voltage Input: Operates seamlessly across any standard aircraft electrical architecture, converting volatile input voltages ranging anywhere from 10 to 32 VDC into a stable 5 VDC output.
• Aviation Grade Certification: Certified under FAA TSO-C71 and EASA ETSO-C71 standards, alongside qualification to rigorous RTCA DO-160G environmental categories for high-altitude cockpit safety.
